DTF-6002ProMax 24" Film Printing Machine

DTF-6002ProMax 24" Film Printing Machine

Parameter

Print Head:  Dual Epson PrecisionCore™ I3200/4720 print heads.
Max Print Size: 600 mm Print Width.
Print Speed: 15-20m2/h

Feature

DTF Pro Max is the next step in the digital revolution, introducing a new digital dtf film printing technique. It compensates for the flaws in existing dtf technology. The maximum print width is 24 inches wide. The maximum print speed is 20m2/h.

Download Brochure

New Feature of DTF-6002 ProMax

STAGGERED INKJET PRINTING TECHNOLOGY

DTF Pro Max is the next step in the digital revolution, introducing a new digital dtf film printing technique. It compensates for the flaws in existing dtf technology.
The maximum print width is 24 inches wide. The maximum print speed is 20m2/h.

SUCTION SYSTEM UPGRADE

Vacuum adsorption conveying platform, absorbing the print material to ensure that the material does not bulge or run off.

CONSTANT TENSION CONTROL SYSTEM

During DTF flm printing processes, the tension control technology automatically regulates tension.

POWDER BOX UPGRADE

Conical powder box reduces the load on the engine and so extends its life.

WHY DTF PRO MAX?

The nozzle printing algorithm, suction system, tension system, and shaking powder system have all been updated in the DTF Pro max series. This improves the machine's stability, extends the service life of machine parts, and increases the machine's efficiency.
  • The next generation of oblique spray staggered ink jet printing has increased printing speed and precision, with 4pass accuracy exceeding 6pass.
  • The tension mechanism prevents the print medium from stretching or shrinking throughout the printing process, resulting in unexpected registration mistakes.
  • The front and back suction systems help the printing film pass through and make cutting a part of the sample during the printing process a breeze.
  • The cone-shaped powder box not only saves DTF powder, but it also disperses the heat generated by the machine while it is in use, extending the motor's life.

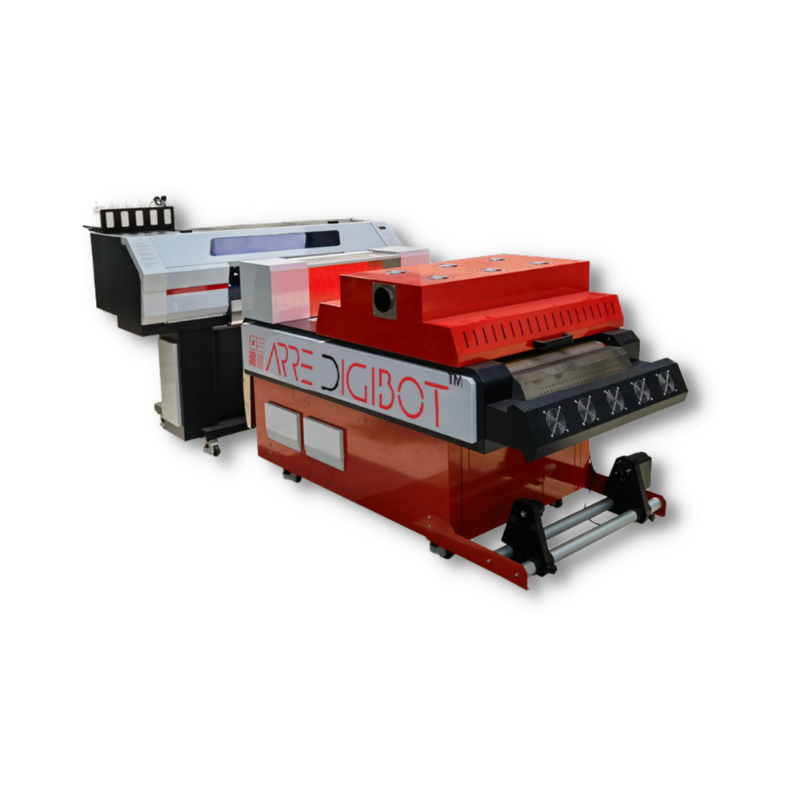

6002promax2

Machine Parameter

Brand Arre Digibot
Model Type DTF 6002 PRO MAX
Print Head I3200-A1
Print Resolution 2400DPI
Max Print Speed 20m2/h
Color Control ICC Color Poil With Adust Unction
Print Width 600mm
Ink Textile Pigment Ink( C, M, Y, K, FY, FP+W; C, M, Y, K, LC, LM, FY, FP+W; , C, M, Y, K, FY, FP, OR, GR+W )
Operation Enviroment Temperature 15°C~30°C, Humidity 50%~75%
Power 50Hz/60Hz 110V/220V 10~20A
System Windows 7 Or Above
Printer (Machine Size）:1600 X 960X 1300mm(L XWxH)
(Packing Size ) : 2040 X 1140X 1240mm(LxWxH)
(Net Weight) : 150KG； (Gross Weight) : 250KG
Glue Coating System (Machine Size）:1600 X 1360 X 1200mm(L XWxH)
(Packing Size ) : 2040 X 1340(LxWxH)
(Net Weight) : 200KG； (Gross Weight) : 250KG
Applicable Substrate Swimsuit, Diving Suit, High-Elasticity Suit, Cotton, Nylon, Chemical Fiber, Leather, PVC & EVA, Etc.
