DTF-6003ProMax

DTF-6003ProMax

Parameter

Print Head:   Three Epson PrecisionCore™ I3200/4720 print heads.
Max Print Size: 600mm Print Width.
Print Speed: 15-20m2/h

Feature

DTF Pro max is a new generation of the digital revolution, creating a new digital dtf film printing process. It makes up for the shortcomings of the existing dtf technology. The max print width 24inch. Max print speed upto 20m2/h. This three print heads machine support fluorescent color printing, multi-color printing.

Download Brochure

New Feature of DTF-6003Pro

STAGGERED INKJET PRINTING TECHNOLOGY

The new generation of dual-nozzle staggered printing technology greatly improves the printing speed, 4pass accuracy surpasses 6 passd is 20m2/h.

SUCTION SYSTEM UPGRADE

Vacuum adsorption conveying platform, absorbing the print material to ensure that the material does not bulge or run off.

CONSTANT TENSION CONTROL SYSTEM

During DTF flm printing processes, the tension control technology automatically regulates tension.

POWDER BOX UPGRADE

Conical powder box reduces the load on the engine and so extends its life.

Machine Parameter

Brand Arre Digibot
Model Type DTF-6003ProMax
Print Head I3200-A1
Print Resolution 2400DPI
Ink Textile Pigment Ink（C,M,Y,K,FY,FP+W; C,M,Y,K,LC,LM,FY,FP+W; C,M,Y,K,FY,FP,OR,GR+W）
Max Print Size 20m2/h
Printer (Machine Size ) : 1600X 1360 X 1200mm(L XWXH) / (Packing Size ; 2040X 1020*1340mm(L XWxH) / (Net Weight) : 200KG ； (Gross Weight) : 250KG
Software Maintop RIP 6.0/CADlink RIP
Operation Enviroment Temperature 15°C~30°C, Humidity 50%~75%
Power 50Hz/60Hz 110V/220V 10~20A
Color Control ICC Color Poil With Adust Unction
Print Width 600mm
Glue Coating System (Machine Size ) : 1600X 1360 X 1200mm(L XWXH) / (Packing Size ; 2040X 1020*1340mm(L XWxH) / (Net Weight) : 200KG ； (Gross Weight) : 250KG
Applicable Substrate Swimsuit, Diving Suit, High-Elasticity Suit, Cotton, Nylon, Chemical Fiber, Leather, PVC & EVA, Etc.

WHY DTF PRO MAX?

The nozzle printing algorithm, suction system, tension system, and shaking powder system have all been updated in the DTF Pro max series. This improves the machine's stability, extends the service life of machine parts, and increases the machine's efficiency
  • The next generation of oblique spray staggered inkjet printing has increased printing speed and precision, with 4pass accuracy exceeding 6pass.
  • The tension mechanism prevents the print medium from stretching or shrinking throughout the printing process, resulting in unexpected registration mistakes.
  • The front and back suction systems help the printing film pass through and make cutting a part of the sample during the printing process a breeze.
  • The cone-shaped powder box not only saves DTF powder, but it also disperses the heat generated by the machine while it is in use, extending the motor's life.

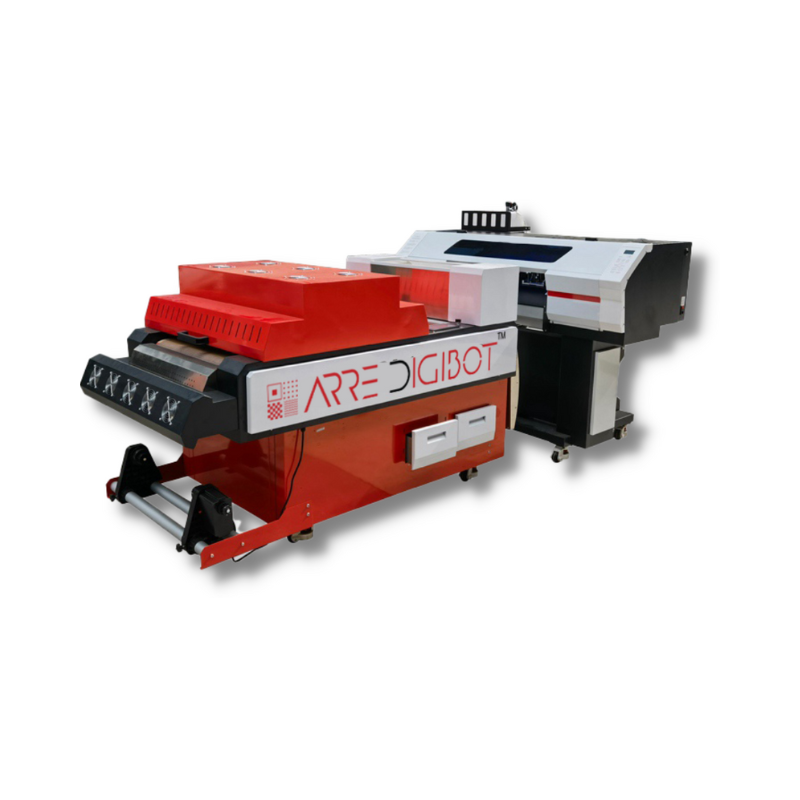

6003promax

Some Application

pillow
t-shirt
bag

DTF Targeted Industries

pink_hat
bagg
cap
hat
shoes
socks
mouse_pad
pink_bag
umbrella
pillow
